Memory leak with one-to-one associations

 Post Reply Post Reply
Author
stephenmcd1 View Drop Down
DevForce MVP
DevForce MVP


Joined: 27-Oct-2009
Location: Los Angeles, CA
Posts: 166
Post Options Post Options   Quote stephenmcd1 Quote  Post ReplyReply Direct Link To This Post Topic: Memory leak with one-to-one associations
    Posted: 13-Mar-2013 at 2:01pm

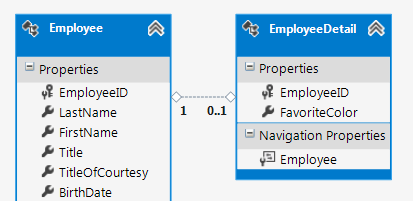

I've been tracing some more memory leaks and found some odd behavior of the EntityManager.UnresolvedParentMap where it would end up holding on to detached entities - leading to a memory leak in our app.  It took some narrowing down but it seems to only happen when there is a one-to-one relationship (or at least that is where we noticed it in our app and that is the only way I could reproduce it - but perhaps it happens in other cases).  To reproduce it, I started with the NorthwindIB database and added a new table called "EmployeeDetail" that is basically a one-to-one with an Employee (I guess it is technically a One-to-OneOrZero).  It looks like this:


If I just make a new employee in an entity manager and then immediately remove it, the employee remains in the UnresolvedParentMap collection even though it is now detached.  And since it's being held by the UnresolvedParentMap, it won't ever get garbage collected and we end up with a memory leak (in our case, the Entity Manager sticks around for a while so we want to be able to evict entities and have them garbage collected).

Here is some test code that demonstrates the problem.  If we pick any other entity type (without one-to-one relationships), it will run fine.  It's just this Employee example that will break:
[TestMethod]
public void TestUnresolvedParentMap()
{
    var em = new EntityManager();

    //Make a new Employee
    var e = em.CreateEntity<Employee>();
    e.EntityAspect.AddToManager();
    e.EmployeeID = 10; //Giving it an ID isn't necessary for the bug

    //Immediately remove it from the entity manager - in this case, we'd assume it
    //  disappears forever...
    e.EntityAspect.RemoveFromManager();

    //Sanity check - it became detached and the entity manager no longer thinks it is loaded
    Assert.AreEqual(EntityState.Detached, e.EntityAspect.EntityState);
    Assert.IsFalse(em.IsEntityLoaded(e.EntityAspect.EntityKey));

    //If we break into the debugger at this point, we can see that em.UnresolvedParentMap is still
    //   holding on to our employee even though it is detached.

    //To double check, we'll use a weak reference to hold on to the employee
    var wr = new WeakReference(e);

    //Clear out of 'strong' reference and force garbage collection to happen
    e = null;
    GC.Collect();

    //At this point, we'd expect the employee to be gone.  But it's not!
    Assert.IsFalse(wr.IsAlive);
}
Back to Top
sbelini View Drop Down
IdeaBlade
IdeaBlade
Avatar

Joined: 13-Aug-2010
Location: Oakland
Posts: 786
Post Options Post Options   Quote sbelini Quote  Post ReplyReply Direct Link To This Post Posted: 14-Mar-2013 at 2:15pm
Hi Stephen,

I verified the unwanted behavior and filed a bug report.
I'll follow up with you once we have a fix.

Back to Top
stephenmcd1 View Drop Down
DevForce MVP
DevForce MVP


Joined: 27-Oct-2009
Location: Los Angeles, CA
Posts: 166
Post Options Post Options   Quote stephenmcd1 Quote  Post ReplyReply Direct Link To This Post Posted: 25-Mar-2013 at 1:20pm
Any estimate on when a fix would be available?  It seems the problem still exists in 6.1.12...
Back to Top
kimj View Drop Down
IdeaBlade
IdeaBlade
Avatar

Joined: 09-May-2007
Posts: 1391
Post Options Post Options   Quote kimj Quote  Post ReplyReply Direct Link To This Post Posted: 25-Mar-2013 at 2:41pm
We weren't able to look at this for the 6.1.12 release. Barring problems, this should be included in the next maintenance release in April. Exact date is still TBD.
Back to Top
myr_zero View Drop Down
Newbie
Newbie
Avatar

Joined: 11-Mar-2013
Location: India
Posts: 15
Post Options Post Options   Quote myr_zero Quote  Post ReplyReply Direct Link To This Post Posted: 15-Apr-2013 at 5:23am
Hi

We have our application in DevForce 2012. Same problem exists there too :( This causing lot of memory leaks. Its good if fix to this is available soon.

Thanks
Manju
Back to Top
kimj View Drop Down
IdeaBlade
IdeaBlade
Avatar

Joined: 09-May-2007
Posts: 1391
Post Options Post Options   Quote kimj Quote  Post ReplyReply Direct Link To This Post Posted: 15-Apr-2013 at 10:22am
Manju, any bug reported in DF2010 which also affects DF2012 will be fixed in both products. We fixed the DF2010 bug in the latest release last week, and we'll fix the DF2012 bug in the next release. We don't yet have a date for this.
Back to Top
